JMD Reservoir Model

Source: R/data.R
jmd_resmodel.Rd

Elevation-storage-discharge relationship for John McGraw Reservoir. Reservoir models must be monotonic.

Usage

jmd_resmodel

Format

A data frame with 3 columns:

stage_ft

Reservoir stage/elevation data (FT-NAVD88)

stor_acft

Cumulative reservoir storage (ACRE-FT) corresponding to reservoir elevation (elev_ft).

discharge_cfs

Cumulative discharge/outflow (CFS) corresponding to reservoir elevation (elev_ft).

Examples

sapply(jmd_resmodel,class)
#>      stage_ft     stor_acft discharge_cfs
#>     "numeric"     "numeric"     "numeric"
head(jmd_resmodel)
#>   stage_ft stor_acft discharge_cfs
#> 1   3784.8         0             0
#> 2   3785.8        10             0
#> 3   3786.8        48             0
#> 4   3787.8       182             0
#> 5   3788.8       446             0
#> 6   3789.8       790             0

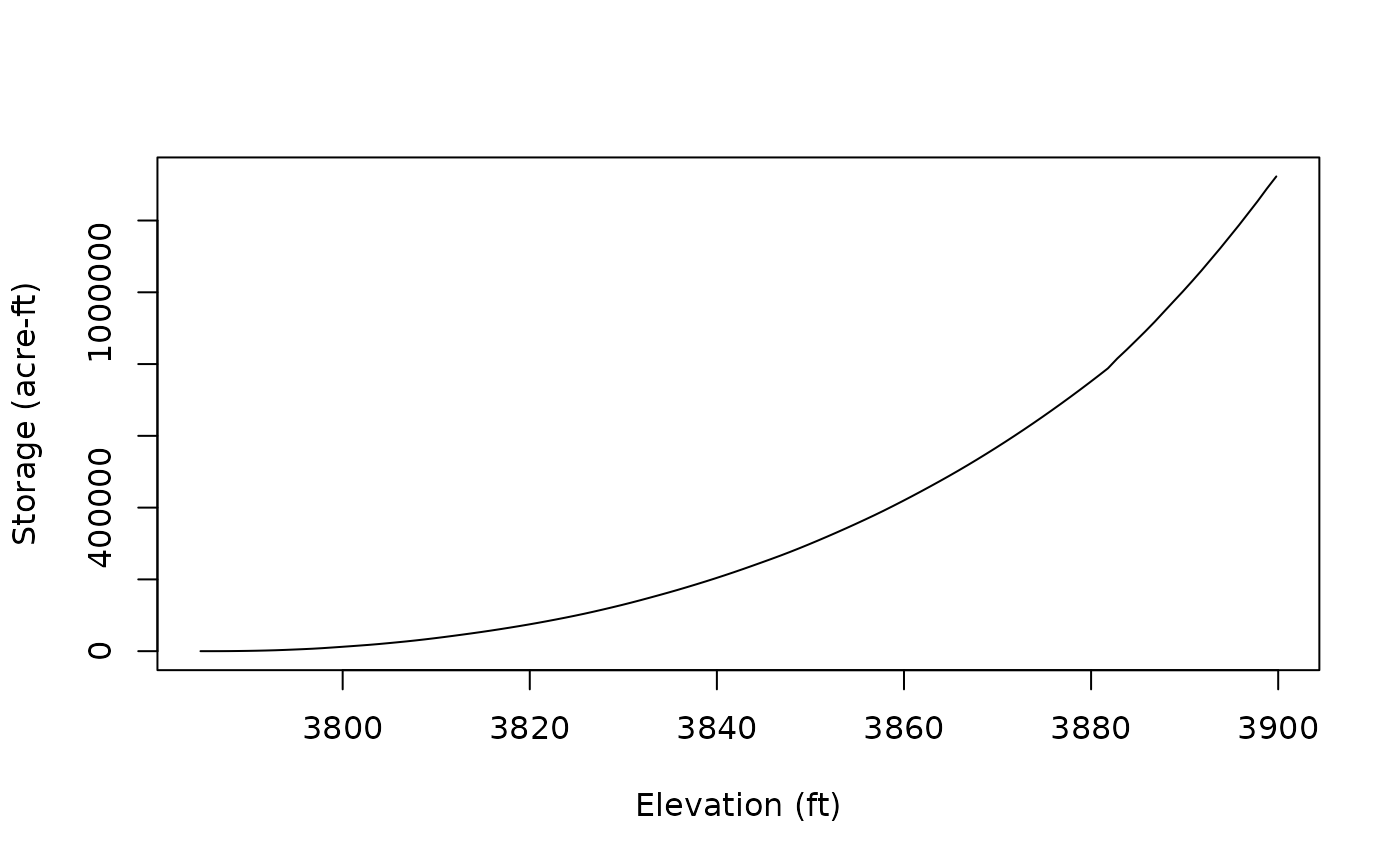

plot(jmd_resmodel[[1]], jmd_resmodel[[2]],
     xlab = "Elevation (ft)", ylab = "Storage (acre-ft)",
     type = "l")
