Inflow hydrograph shape for Spillway Design Flood (SDF).
Format
A data frame with 337 rows and 2 columns:
- Ordinate
Timeseries Ordinate
- Date
Date mm/dd/yyyy
- Time
Time in 00:00
- Flow
Inflow (cfs)
Examples
sapply(jmd_hydro_sdf,class)
#> Ordinate Date Time Flow
#> "integer" "character" "character" "integer"
head(jmd_hydro_sdf)
#> Ordinate Date Time Flow
#> 1 1 1/1/1900 0:00 20000
#> 2 2 1/1/1900 1:00 20000
#> 3 3 1/1/1900 2:00 20000
#> 4 4 1/1/1900 3:00 20000
#> 5 5 1/1/1900 4:00 20000
#> 6 6 1/1/1900 5:00 20000

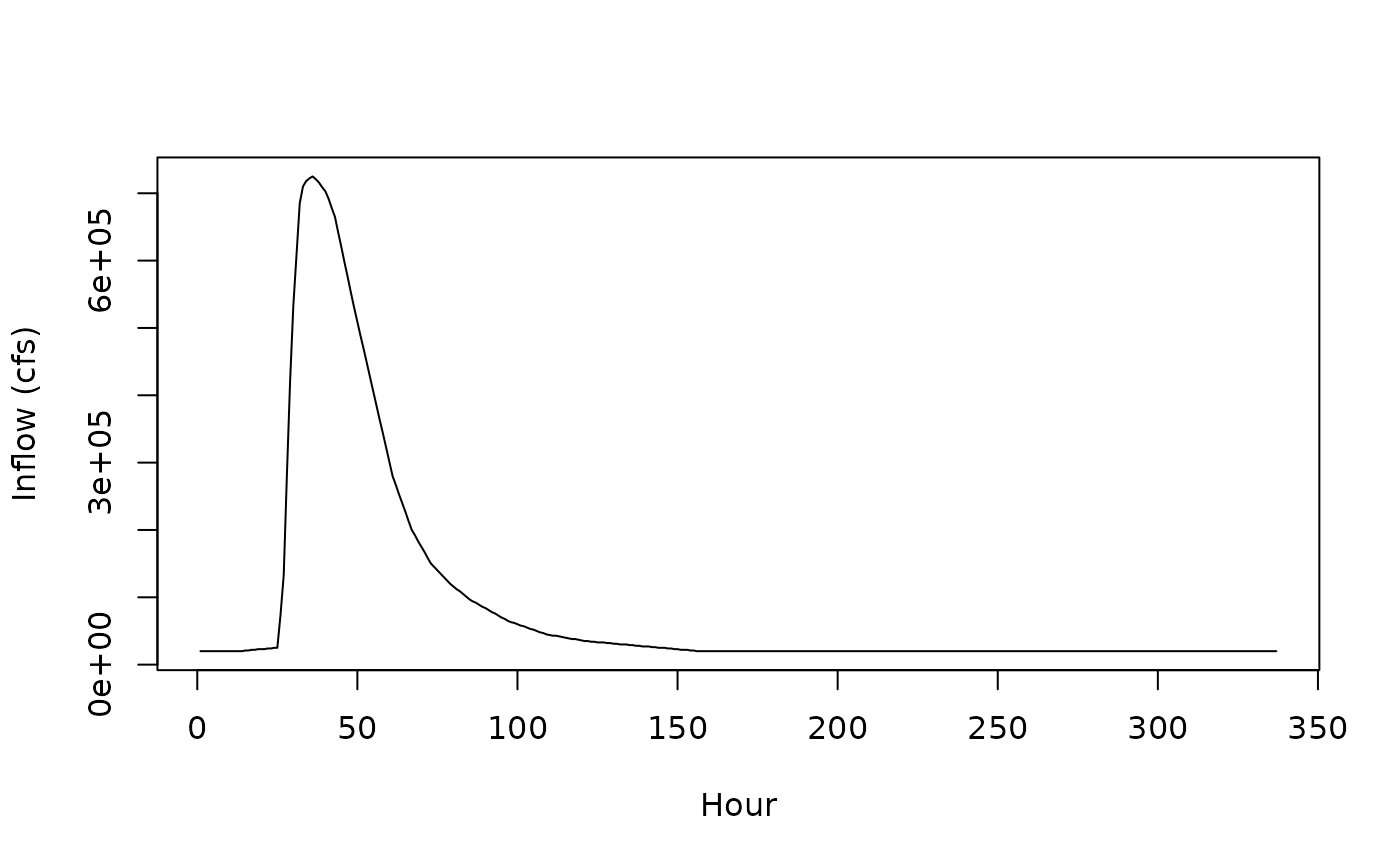

plot(jmd_hydro_sdf$Ordinate, jmd_hydro_sdf$Flow,
xlab = "Hour", ylab = "Inflow (cfs)",
type = "l")
