Hydrograph Scaling Validation

Source: vignettes/validation-hydrograph_scaling.Rmd
validation-hydrograph_scaling.Rmd

Purpose

Validate that scale_hydrograph() correctly scales inflow hydrographs and converts between timesteps. This test covers three cases:

  1. 1-hour input, 1-hour routing — Verify that the scale factor is applied correctly and output dimensions are preserved.
  2. 15-minute input, 1-hour routing — Verify that block averaging produces the correct timestep, row count, and ordinate values.
  3. Edge cases — Verify behavior with a scale factor of 1 and non-negative flow output.

Setup

hydrographs <- hydrograph_setup(jmd_hydro_apr1999,
                                jmd_hydro_jun1921,
                                jmd_hydro_jun1965,
                                jmd_hydro_jun1965_15min,
                                jmd_hydro_may1955,
                                jmd_hydro_pmf,
                                jmd_hydro_sdf,
                                critical_duration = 2,
                                routing_days = 10)

hydro_1hr   <- hydrographs[[1]]
hydro_15min <- hydrographs[[4]]

obs_vol    <- attr(hydro_1hr, "obs_vol")
obs_vol_15 <- attr(hydro_15min, "obs_vol")

sampled_vol_2x    <- obs_vol * 2
sampled_vol_15_2x <- obs_vol_15 * 2
Input Hydrograph Summary
Hydrograph Timestep (hr) Rows Observed Volume
April 1999 (1-hr) 1.00 241 25313.96
June 1965 (15-min) 0.25 961 53445.41

Test 1: 1-Hour Input, 1-Hour Routing

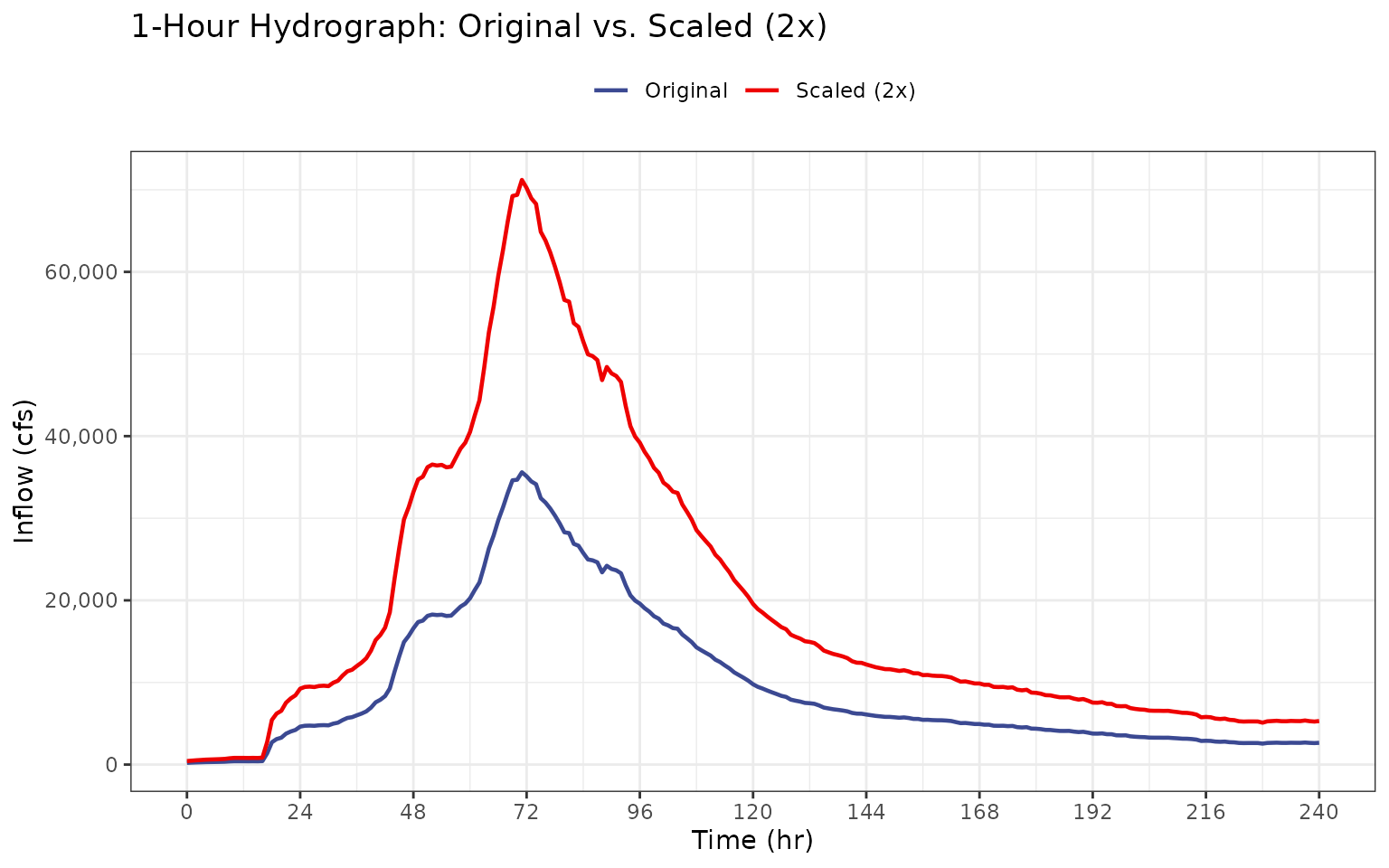

Scale the April 1999 hydrograph by a factor of 2 with matching input and routing timesteps (1-hour).

scaled_1hr <- scale_hydrograph(
  hydrograph_shape = hydro_1hr[, c("hour", "inflow")],
  observed_volume  = obs_vol,
  sampled_volume   = sampled_vol_2x,
  routing_dt       = 1)
1-Hour Input / 1-Hour Routing Checks
Check Result
Output class is data.frame TRUE
Column names correct TRUE
Time starts at 0 TRUE
Row count preserved TRUE
Scale factor applied (all ordinates doubled) TRUE

Test 2: 15-Minute Input, 1-Hour Routing (Block Average)

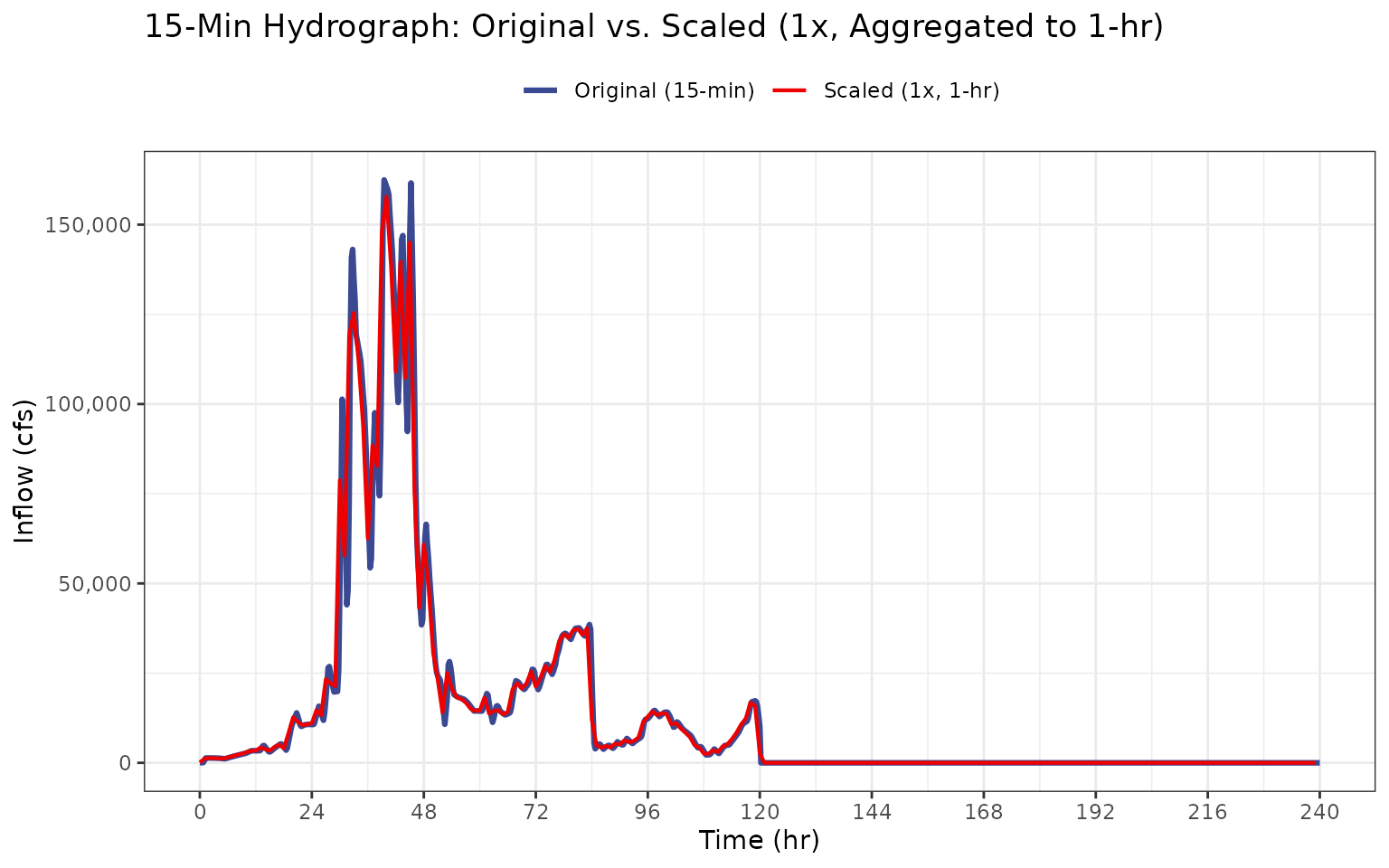

Scale the June 1965 (15-min) hydrograph by a factor of 1 with block averaging to 1-hour routing timestep.

scaled_15min <- scale_hydrograph(
  hydrograph_shape = hydro_15min[, c("hour", "inflow")],
  observed_volume  = obs_vol_15,
  sampled_volume   = obs_vol_15,
  routing_dt       = 1)

expected_rows <- floor(nrow(hydro_15min) / 4)
dt_out <- scaled_15min$time_hrs[2] - scaled_15min$time_hrs[1]
expected_first <- mean(hydro_15min$inflow[1:4]) * 1
15-Minute Input / 1-Hour Routing Checks
Check Expected Actual Pass
Row count (15-min to 1-hr, factor of 4 reduction) 240 240 TRUE
Output timestep is 1 hour 1 1 TRUE
Time starts at 0 0 0 TRUE
First ordinate matches manual block average × scale 36.5 36.5 TRUE

Acceptance Criterion

Test 3: Edge Cases

Unity scaling (sampled_volume = obs_vol) verifies that when the sampled flood volume exactly matches the observed hydrograph volume, the scaling operation is a no-op — the output ordinates are identical to the input within floating point tolerance. This is an important baseline check: any scaling implementation that distorts the hydrograph shape when the scale factor is 1.0 has a fundamental error.

Non-negative flows verifies that the scaled hydrograph contains no negative inflow values. This can be a non-trivial failure mode when the scaling procedure involves interpolation, baseline correction, or any arithmetic that operates on near-zero recession limb ordinates. Negative inflows are physically meaningless and would corrupt the Modified Puls routing by implying water is being withdrawn from the reservoir by the inflow boundary condition.

# Scale factor = 1 (same volume)
scaled_unity <- scale_hydrograph(
  hydrograph_shape = hydro_1hr[, c("hour", "inflow")],
  observed_volume  = obs_vol,
  sampled_volume   = obs_vol,
  routing_dt       = 1
)

unity_match <- isTRUE(all.equal(scaled_unity$inflow_cfs, hydro_1hr$inflow, tolerance = 1e-10))

# Non-negative flows
scaled_2x <- scale_hydrograph(
  hydrograph_shape = hydro_1hr[, c("hour", "inflow")],
  observed_volume  = obs_vol,
  sampled_volume   = sampled_vol_2x,
  routing_dt       = 1
)

all_nonneg <- all(scaled_2x$inflow_cfs >= 0)
Edge Case Checks
Check Result
Scale factor = 1 returns unchanged ordinates TRUE
All flows non-negative for positive scale factor TRUE

Acceptance Criterion

Summary

Test Description Result
1 1-hour input, 1-hour routing — scaling PASS
2 15-min input, 1-hour routing — block average PASS
3 Edge cases — unity scale, non-negative flows PASS
