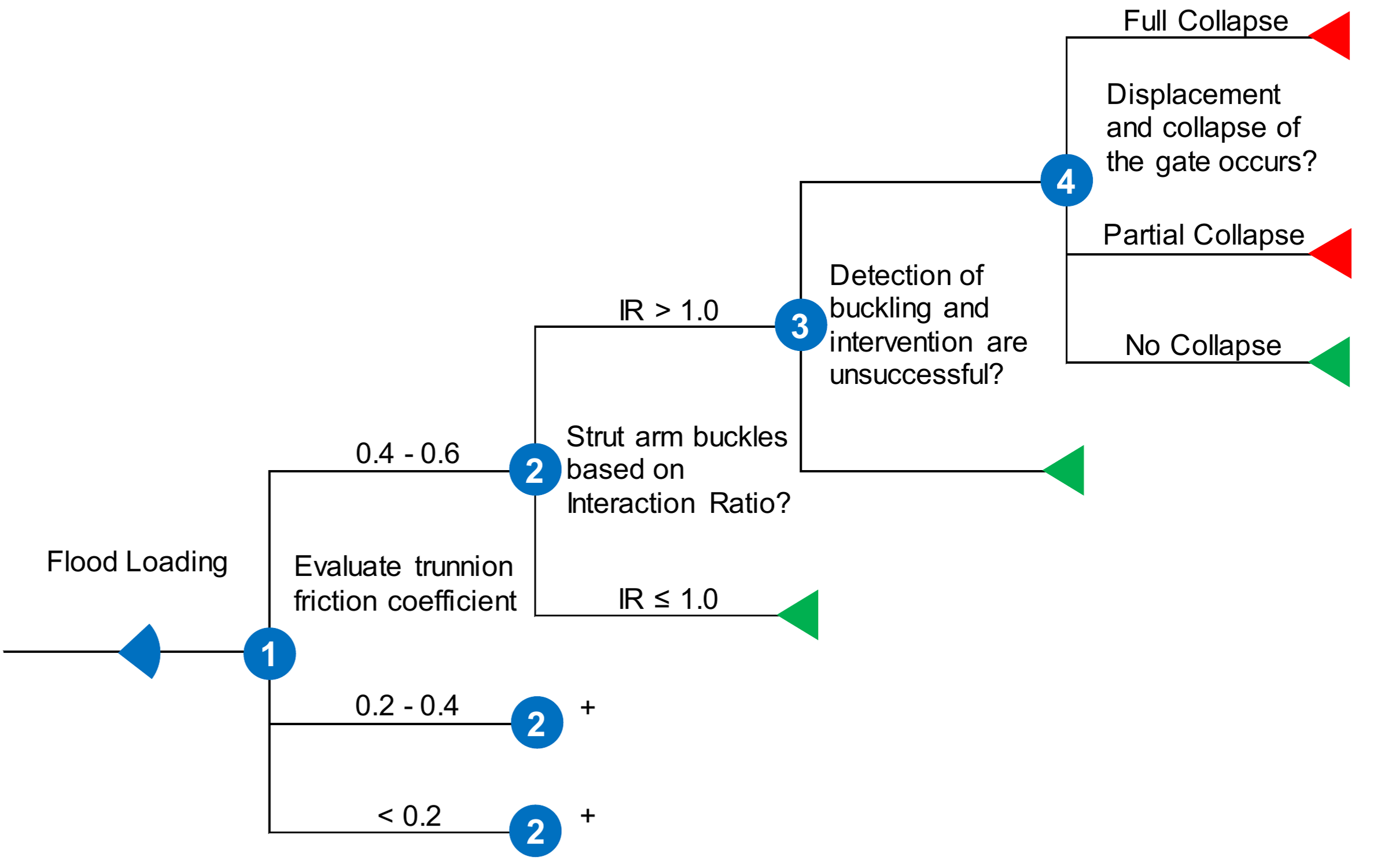

Radial Gate Failure Due To Trunnion Friction
NOTE
Structural potential failure modes are very dependent on site-specific conditions. Final performance event trees used in risk assessments may vary significantly from the example performance event trees provided in this database due to site-specific component configurations, foundation conditions, and failure processes. Use of the example structural performance event trees should be done with caution and should be adjusted, as necessary.
