Risk Calculations Suite

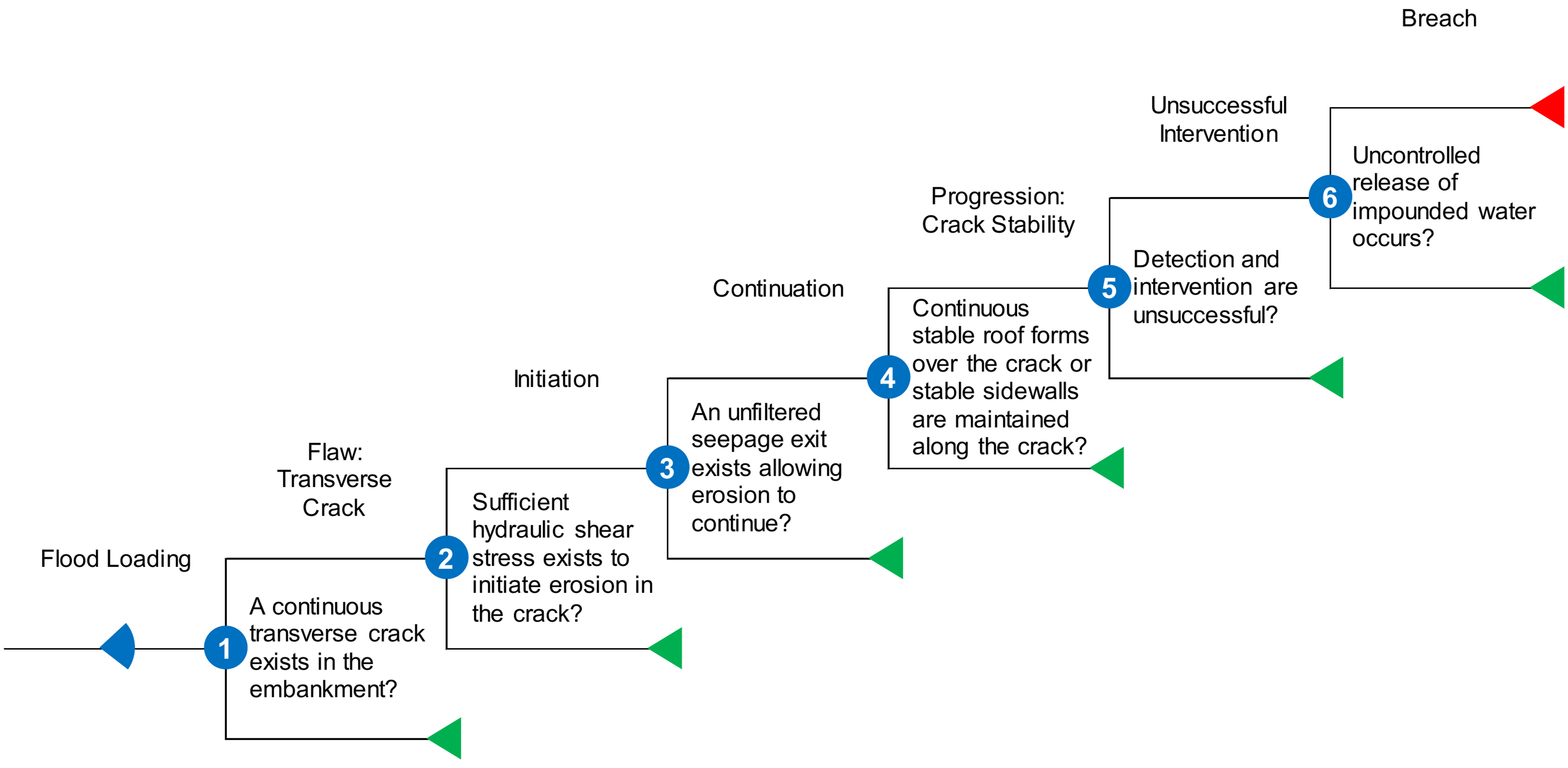

Concentrated Leak Erosion

Homogeneous Embankment​

Concentrated Leak Erosion event tree

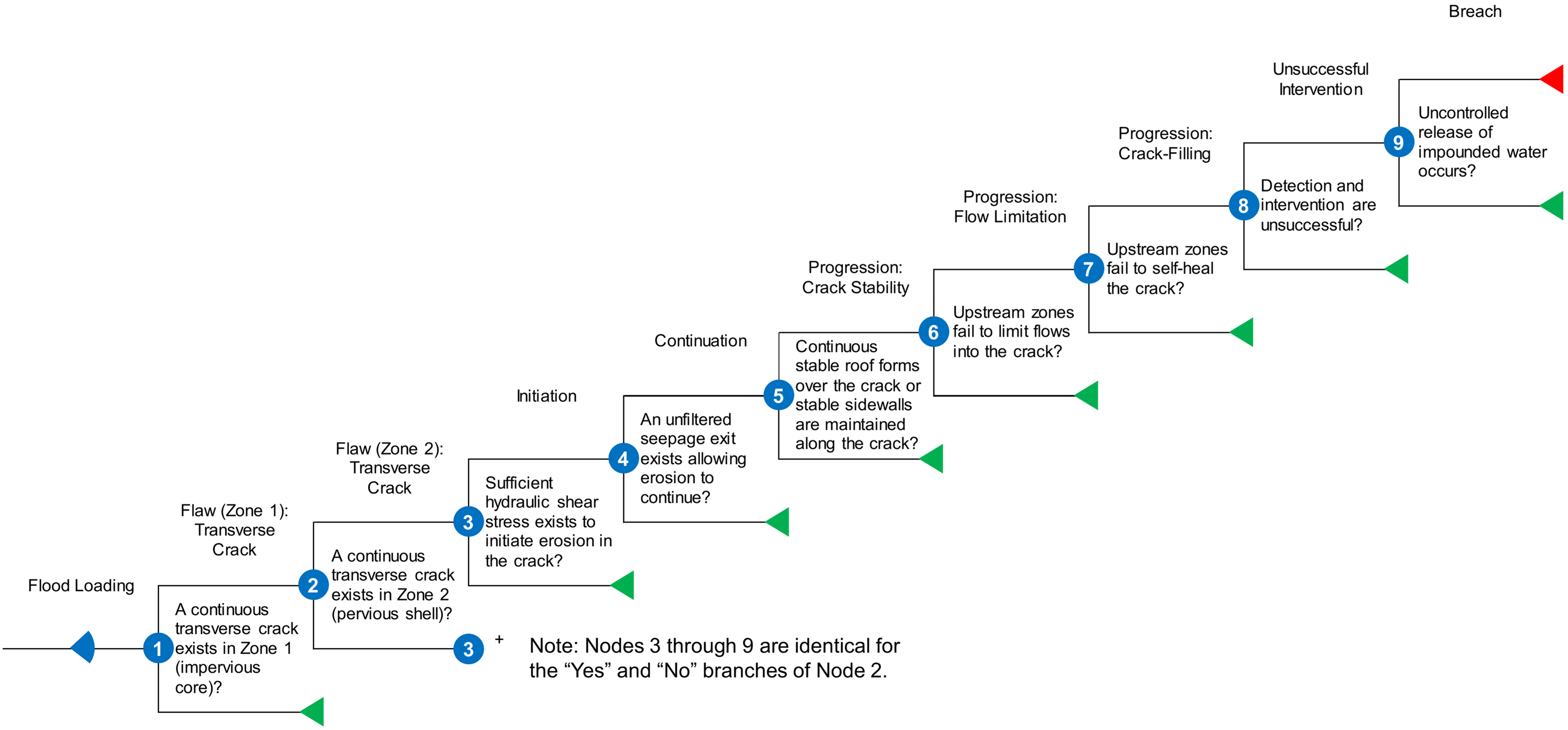

Zoned Embankment​

With cracked filter or incompatible zones

Concentrated Leak Erosion event tree

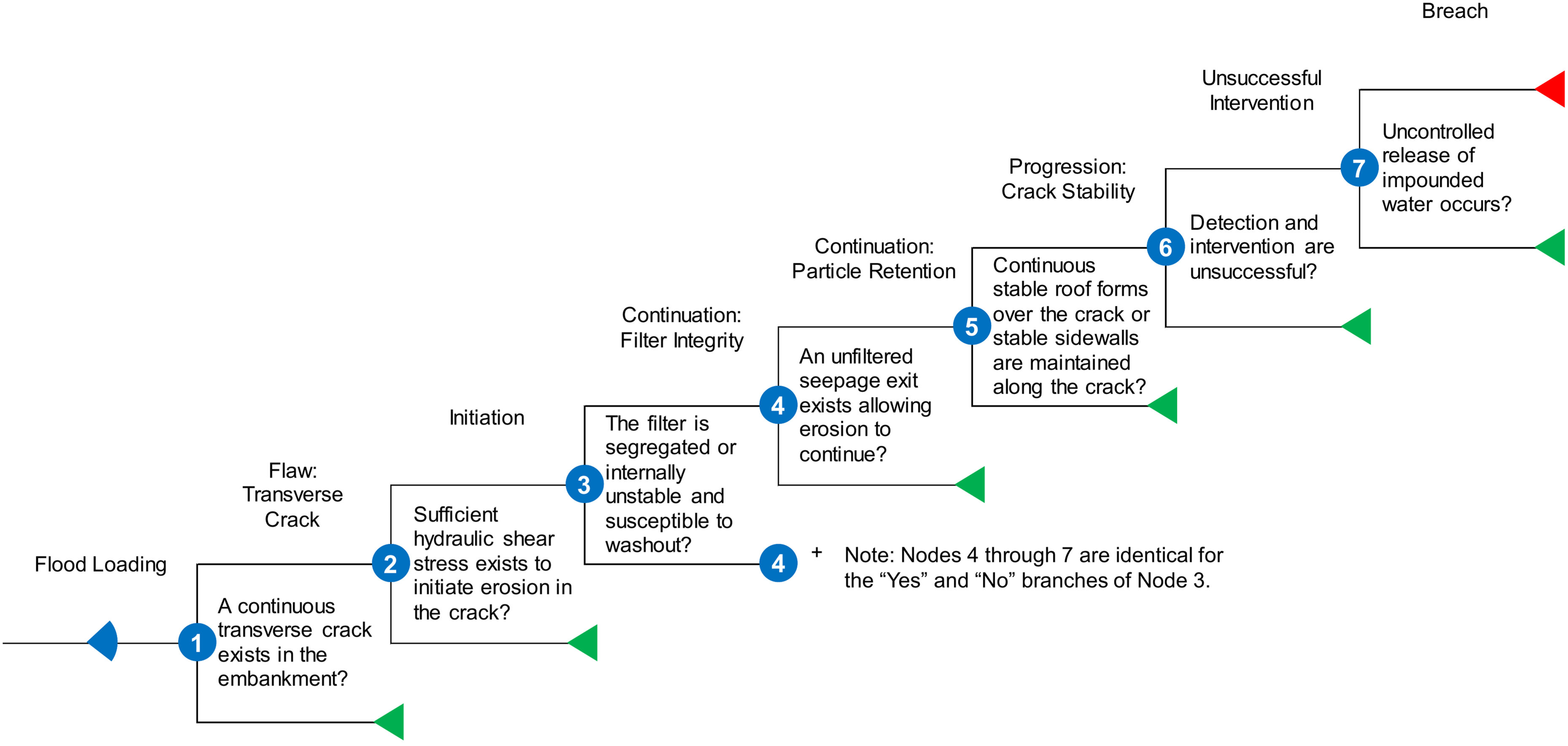

Homogeneous Embankment​

With segregated or internally unstable filter

Concentrated Leak Erosion event tree

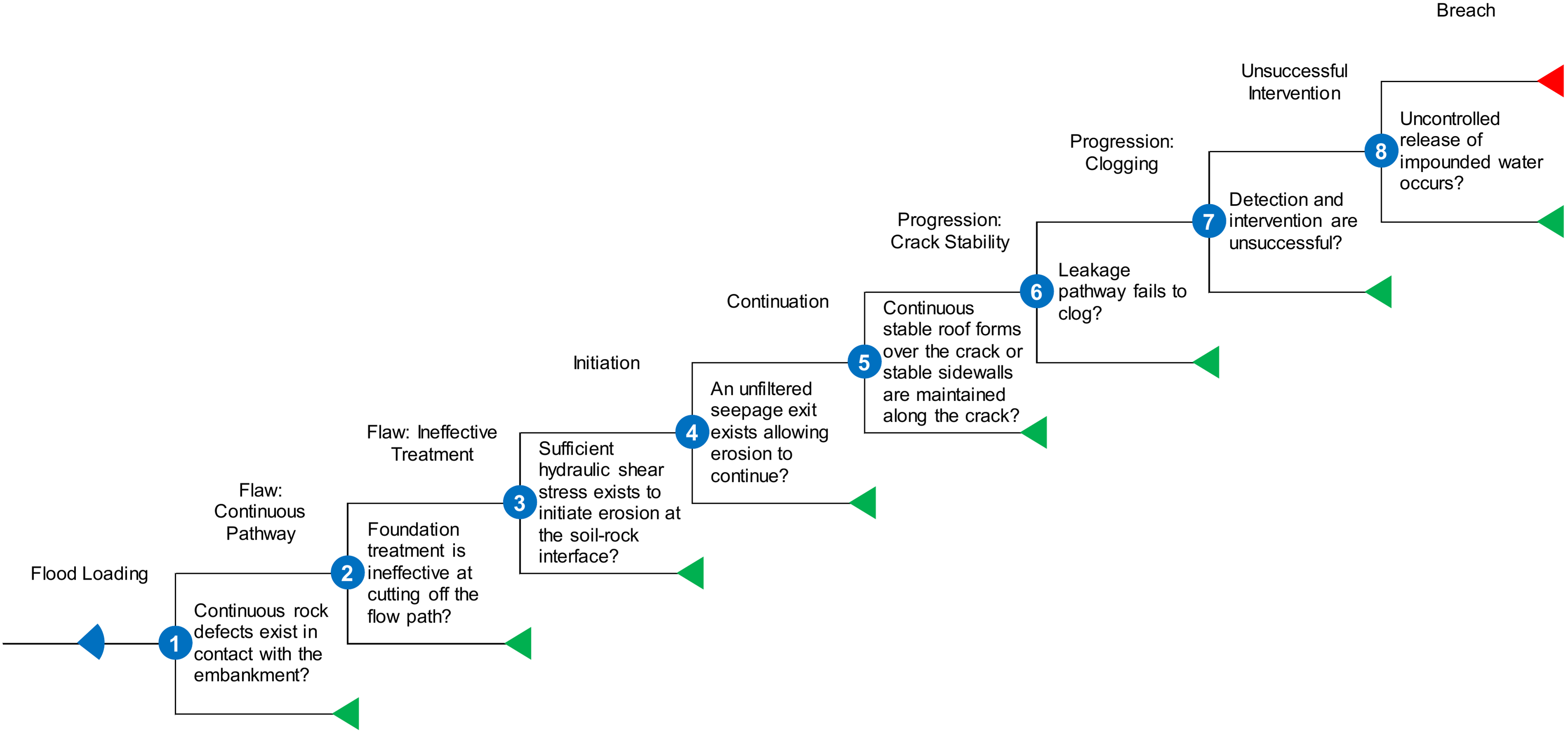

At Soil-Rock Interface​

Concentrated Leak Erosion event tree

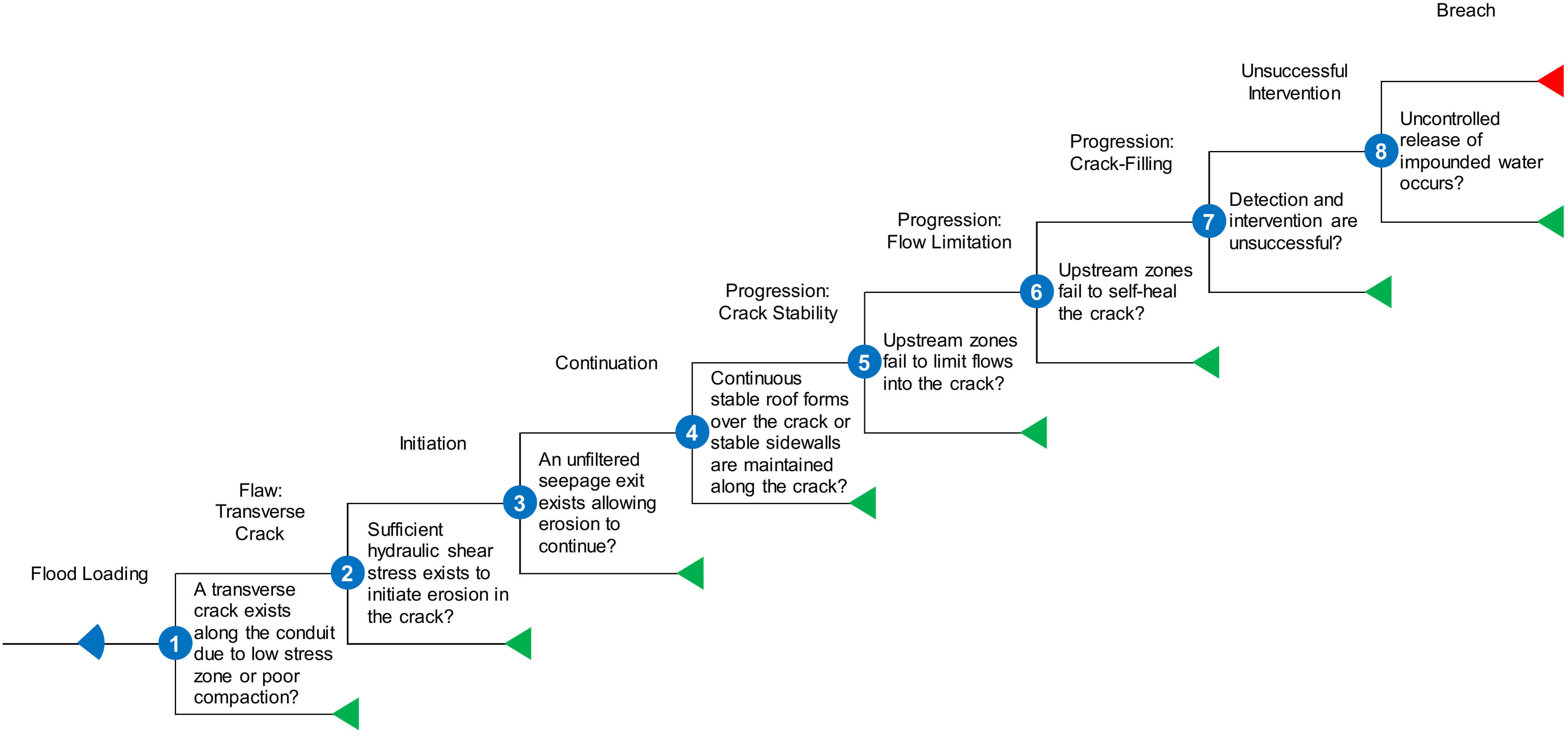

Along Embedded Structure​

Such as a conduit

Concentrated Leak Erosion event tree
